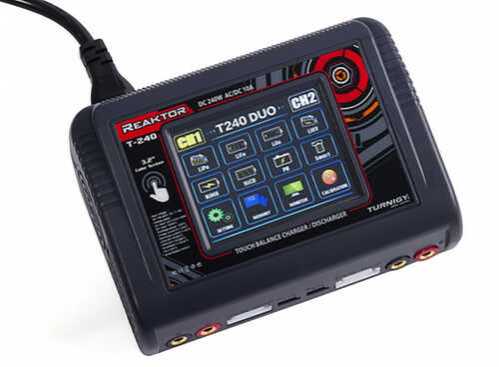

Turnigy Reaktor T240 AC/DC 10A 2 x 150W Touch Screen Charger (EU Plug)

Turnigy has moved into the next decade of the 21st century with the T240 touch screen charger. It has the ability to charge Lipo/Lilo/LiFe/LiHV/NiMH/NiCd and lead acid batteries as well as having battery management, security settings, and operation data memory. It can also charge two different battery chemistries simultaneously. Utilizing 3.2-inch color LCD Toch screen display for easy operation.

The Reaktor T240 is capable of accepting an input power supply of 11~18V DC and 100~240V AC which makes it perfect for use at home in the workshop or for when you go out to the flying field or race track. The AC supply is capable of charging on both channels at 10A to a max of 150 watt. On a DC supply, it can charge on both channels at 10A but to a max of 120 watts. The T240 also has a discharge facility of 2 x 0.1~2A for discharging your batteries. It can support power distribution in AC mode, total power 150W (CH1+CH2=150Watt). and in DC mode, works in 2 * 120W. Max charge current can reach 10A each port in both AC and DC mode.

Features:

• Full plastic shell, safe, compact, beautiful.
• Twin-channel, charge two different kinds of batteries simultaneously.
• High power, single port max 150W.support power distribution.
• Practical for a variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
• Automatic identification of Li-Po batteries cells counts
• Adjustable digital DC Power.
• Built in smart cooling fan for easy heat dissipation.
• Built-In PFC AC adapter high efficiency. comes with a power switch.
• Graph display of charging status
• Multiple charging modes.
-Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
-NiMH/NiCd: Charge, Discharge, Cycle.
-PB: Charge, Discharge, Trickle.
• Multi-function:
-Battery Meter: Display lithium battery cell counts, battery capacity percentage, each cell's voltage. (does not support 1s battery)
-TVC(Terminal voltage control): The Charger allows the user to set the charge/discharge end voltage.
-Lithium Battery internal Resistance Check: can display each cell's resistance. (does not support 1s battery)
-Calibration: cell voltage monitoring and calibration.
-Smart battery: Smart battery I,II,III,(Need optional DJI Charging cable)
• Data storage and loading
• Re-peak and cycling of NiMH/NiCD battery.
• Maximum Safety: Automatic charge current limit, Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
• Firmware update.

Specs:
Type: Turnigy Reaktor T240 AC/DC 10A 2 x 150WTouch Screen Charger
AC Input Voltage: 100~240V
DC Input Voltage: 11~18V
Charge Power AC: 150W on both channels
Charge Power DC: 120W on both channels
Charge Current: 0.1~10A on both channels
Discharge Current: 0.1~2A on both channels
Number of Cells: 1~6 Lilon/LiPo/LiLo/LiFe/LiHV on both channels
Number of Cells: 1~15 NiCd/NiMH on both channels
Number of Cells: 2~20V Pb on both channels
Smart Battery: I/II/III on both channels
Current drain for balancing:500mA/cell
Dimensions: 145x105x64mm
Weight: 480g
Mains Plug: EU type

Included:
1 x Turnigy Reaktor T240 AC/DC 10A 2 x 150WTouch Screen Charger
2 x XT60 charge leads
2 x Adapter leads with crocodile clips
2 x Balance boards
2 x Balance board leads
1 x Std Tamiya adapter lead
1 x Mini Tamiya adapter lead
1 x DC input lead
1 x Mains lead with EU plug
