FLIR Camera Tau 2 - 336 Performance Version
Termék leírás:

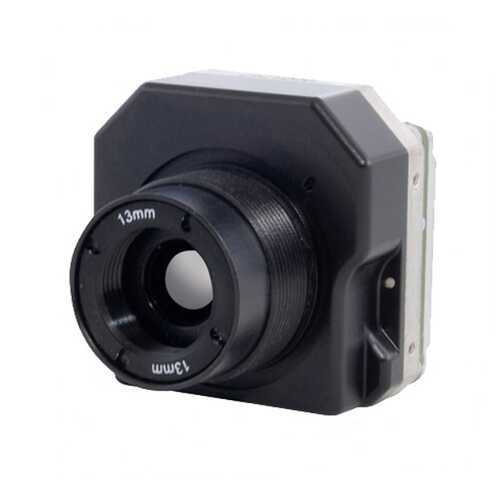

FLIR Camera Tau 2 - 336 Performance Version
Széles látómező (WFOV) Tau 2 336 egy 336x256 LWIR hűtés nélküli fokális, sík tömb (FPA) kamera, egy pixel mérete 17 mikron. Számos széles látómezőt lencse lehetőséget kínálnak. A lencsék kemény szénnel bevont kedvezőtlen körülményekhez. Számos opcionális berendezések és további csatlakozások kérhetők hozzá. Hard Carbon bevonattal ellátott lencse Specifikáció:
| Overview | Tau 640 | Tau 336 | Tau 324 |
| Thermal Imager | Uncooled VOx Microbolometer | ||
| FPA / Digital Video Display Formats | 640 × 512 | 336 × 256 | 324 × 256 |
| Analog Video Display Formats | 640 × 480 (NTSC); 640 × 512 (PAL)1 | ||
| Pixel Pitch | 17 μm | 25 μm | |
| Spectral Band | 7.5 - 13.5 μm | ||
| Full Frame Rates | 30 Hz (NTSC) 25 Hz (PAL) | 30/60 Hz (NTSC) 25/50 Hz (PAL) | |
| Exportable Frame Rates | 7.5 Hz NTSC; 8.3 Hz PAL | ||
| Sensitivity (NEdT) | <50 mK at f/1.0 | ||
| Scene Range (High Gain) | -25°C to +135°C | -25°C to +100°C | -25°C to +135°C |
| Scene Range (Low Gain) | -40°C to +550°C | ||
| Time to Image | <5.0 sec | <4.0 sec | |
| Factory Optimized Video | Yes | ||
| Physical Attributes | Tau 640 | Tau 336 | Tau 324 |
| Size (w/o lens) | 1.75" x 1.75" x 1.18" | ||
| Lensed & Lensless Configurations Available | Yes | ||
| Precision Mounting Holes (M2x0.4) on 3 sides (2 per side) | Yes | ||
| Sealable Bulkhead Mounting Feature on Lens Barrel (M29×1.0), WFOV Only | Yes | ||
| Radiometric Features | Tau 640 | Tau 336 | Tau 324 |
| Isotherms | See Product Spec page 34 Section 3.3.3.1 | ||
| Spot Meter | Temperatures measured in central 4×4 | ||
Advanced Radiometry |
Improved accuracy, moveable spot meter, image metric data, T-Linear (digital output) (OEM part number required, additional charge) | ||
| Image Processing & Display Controls | Tau 640 | Tau 336 | Tau 324 |
| NTSC/PAL (field switchable) | Yes | ||
| Image Optimization | Yes | ||
| Digital Detail Enhancement | Yes | ||
| Invert/Revert (analog and 8-bit digital) | Yes | ||
| Polarity Control (black hot/white hot) | Yes | ||
| Color & Monochrome Palettes (LUTs) | Yes | ||
| Digital Zoom | 2x, 4x, 8x | 2x, 4x | |
| Continuous Zoom | Yes | ||
| Symbology (256 gray & 256 color) | Yes, single-pixel resolution for all models | ||
| Digital Video | Tau 640 | Tau 336 | Tau 324 |
| LVDS (14-bit or 8-bit) | Yes | ||
| CMOS (14-bit or 8-bit) | Yes | ||
| BT.656 (8-bit) | Yes | ||
| Camera Link (Expansion Bus Accessory Module) | Yes | ||
| Slow Video Option (factory configured) | Yes | ||
| Interfacing | Tau 640 | Tau 336 | Tau 324 |
| Primary Electrical Connector | 50-pin Hirose | ||
| Input Power (max 2.5 amp during shutter) | 4.0 - 6.0 VDC | ||
| Power Dissipation, steady state | <1.2 W | ~1.0 W | |
| Flat-Field Correction (FFC) Duration | <0.5 sec | ||
| Power Reduction Switch (disables analog video) | Yes | ||
| RS-232 Compatible Communication | 57,600 & 921,600 baud | ||
| External Sync Input/Output | Yes | ||
| Discrete I/O Controls Available | Yes (10-camera minimum) | ||
| Settable Splash Screens | Yes (10-camera minimum) | ||
| User Configurability via SDK & GUI | Yes | ||
| Dynamic Range Switching | No | Yes | |
| Environmental | Tau 640 | Tau 336 | Tau 324 |
| Operating Temperature Range | -40°C to +80°C | ||
| Non-Operating Temperature Range | -55°C to +95°C | ||
| Temperature Shock | 5°/min | ||
| Operational Altitude | +40,000 feet | ||
| Humidity | 5% - 95% non-condensing | ||
| Vibration | 4.3g three axis, 8 hr each | ||
| Shock | 200g shock pulse w/ 11 msec sawtooth | ||
| ROHS | Compliant | ||
Wide Field of View (WFOV) Models
| 7.5 mm f/1.4 | 9 mm f/1.25 for Tau 324 & 336 f/1.4 for Tau 640 | 13 mm f/1.25 | 19 mm f/1.25 | ||
| Tau 640 (17μ 640×512) | FoV iFoV | 90° x 69° 2.267 mr | 69° x 56° 1.889 mr | 45° x 37° 1.308 mr | 32° x 26° 0.895 mr |
| Tau 336 (17μ 336×256) | FoV iFoV | 45° x 35° 2.267 mr | 35° x 27° 1.889 mr | 25° x 19° 1308 mr | 17° x 13° 0.895 mr |
| Tau 324 (25μ 324×256) | FoV iFoV | 63° x 50° 3.333 mr | 48° x 37° 2.778 mr | 34° x 26° 1.923 mr | 24° x 18° 1.316 mr |
| Min Focus Distance | 2.5cm | 3.2cm | 7.6cm | 15.3cm | |
| Hyperfocal Distance | 1.2m | 2.1m | 4.4m | 9.5m | |
| Hyperfocal Depth of Field | 0.6m | 1.1m | 2.2m | 4.8m | |
| Lens Mount | M34x0.5 inside thread; M29x0.5 outside thread | ||||
| Length | 8mm | 9mm | 13mm | 19mm | |
| Diameter | 29mm | 29mm | 29mm | 29mm | |
| Weight | 72g | 72g | <70g | <70g | |
Narrow Field of View (NFOV) Models
| 25 mm f/1.1 | 35 mm f/1.2 | 50 mm f/1.2 | 60 mm f/1.25 | 100 mm f/1.6 | ||
| Tau 640 (17μ 640×512) | FoV iFoV | 25° x 20° 0.680 mr | 18° x 14° 0.486 mr | 12.4° x 9.9° 0.340 mr | 10.4° x 8.3° 0.283 mr | 6.2° x 5° 0.170 mr |
| Tau 336 (17μ 336×256) | FoV iFoV | 13° x 10° 0.680 mr | 9.3° x 7.1° 0.486 mr | 6.5° x 5° 0.340 mr | 5.5° x 4.2° 0.283 mr | 3.3° x 2.5° 0.170 mr |
| Tau 324 (25μ 324×256) | FoV iFoV | 18° x 14° 1.000 mr | 13° x 10° 0.714 mr | 9.1° x 6.9° 0.500 mr | 7.6° x 5.7° 0.417 mr | 4.6° x 3.7° 0.250 mr |
| Min Focus Distance | 30cm | 60cm | 1.5m | 2.3m | 7m | |
| Hyperfocal Distance | 21m | 35m | 71m | 122m | 160m | |
| Hyperfocal Depth of Field | 11m | 18m | 36m | 61m | 80m | |
| Lens Mount | M34x0.5 inside thread. | |||||
| Length | 25mm | 35mm | 50mm | 60mm | 100mm | |
| Diameter | 42mm | 42mm | 58mm | 61mm | 82mm | |
| Weight | 112g | 150g | 280g | 200g | 479g | |
